The Best Concrete Sensor in 2020

A Review of Top Wired and Wireless Temperature and Strength Concrete Sensors

A Review of Top Wired and Wireless Temperature and Strength Concrete Sensors

This post was written by Aali Alizadeh, the CEO and Co-Founder of Giatec Scientific Inc. Giatec Scientific Inc. is a global company revolutionizing the construction industry by bringing smart testing technologies and real-time data collection to the forefront of every jobsite. Giatec’s suite of hardware & software products has leveraged advanced technologies such as; Artificial Intelligence (AI), and Internet of Things (IoT), including; wireless concrete sensors, mobile apps, and advanced non-destructive technologies (NDT) to drive innovation throughout concrete’s lifecycle. For more information visit www.giatec.ca.

This article appeared first on GiatecScientific.com and has been republished with permission from Giatec. The original version can be found by clicking or tapping here.

Concrete Construction Planning

In a construction project, concrete is often on the critical path. Most of the jobsite activities can not be initiated unless the concrete that is placed for building structural elements such as beams and slabs has achieved sufficient strength (typically 75% of the specified compressive strength of concrete). If concrete is not cured properly in favorable temperature ranges (at least more than 5°C or 40°F based on ACI 306) after pouring, it is quite possible to have a slippage in the project plan and timeline due to the delayed strength development in concrete. Curing temperature is also important when it comes to mass concrete placements such as foundations. If the temperature differential between the surface and core of the mass concrete element exceeds a certain level, there is good chance of concrete cracking due to thermal stresses. Project managers, therefore, have a thermal control plan to ensure that concrete achieves the target strength values as scheduled during the first few days after pouring concrete so they can safely move to the next steps of construction such as formwork removal or post-tensioning with confidence.

Monitoring Concrete Curing and Hardening

A comprehensive thermal control plan describes the temperature monitoring procedure that the general contractor or concrete sub-contractor must implement when placing concrete in cold or hot weather conditions, as well as that for mass concrete elements. This plan generally includes details on the minimum and maximum allowable temperature values for different structural locations, maximum allowable temperature differential for mass concrete placements, type of equipment, sensors and tools for temperature measurement, frequency and duration of temperature readings, as well as relevant heating or cooling producers.

The in-situ concrete temperature measurements can also be used to estimate the strength of concrete using the maturity method (as per ASTM C1074) in real-time. The possibility of obtaining field strength of concrete (without relying of delayed lab test results), makes concrete temperature measurement even more important particularly in structural concrete elements. In addition to temperature measurement that is an essential part of every thermal control plan, some contractors have been leveraging the maturity method to optimize their project schedules and prevent delays in critical construction operations such as stripping forms, shoring and re-shoring removal, pulling post-tension cables, and opening traffic on concrete pavement. In addition, the simultaneous monitoring of concrete temperature and strength provides opportunities for the optimization of heating and cooling cost, as well as allowing for higher temperature differentials.

Different Types of Concrete Temperature Sensors and Maturity Meters

When it comes to the choice of concrete temperature or maturity measurement sensors and equipment, contractor have many options to select based on the cost, accuracy, and ease of use, and of course how all these considerations would fit their project needs and budget. The measurement systems available in the market are categorized as follows:

a.       Thermocouples

b.      Wired Temperature and Maturity Loggers

c.       Wired Concrete Sensors with External Wireless Transmitter

d.      Fully Embedded Wireless Concrete Sensors

Each of these temperature/maturity monitoring systems have their own advantages and disadvantages and it is important for contractors to review these before developing their thermal control planning in order to maximize the ROI. It should also be noted that infrared laser-based temperature measurement tools are not recommended for monitoring concrete curing and hardening as they can not capture internal concrete temperature.

Concrete Thermocouple

A concrete thermocouple consists of two wires of different metals connected twisted together at one end to form an electrical junction. There is a temperature-dependent voltage that is produced by the thermocouple due to its thermoelectric property. This voltage is measured by an external equipment and is then used to estimate the concrete temperature. The base metal thermocouple type J and K are the most commonly used types of thermocouple in the concrete industry as they are relatively inexpensive (about $1/ft) with a wide range of temperature measurement.

Thermocouple Wire Coming out of Concrete Connected to a Logger.

Thermocouple Wire Coming out of Concrete Connected to a Logger.

Concrete thermocouple wires are purchased in a bundle which is then cut into custom lengths based on the distance between the location of the temperature measurement and where the measurement equipment is placed. At one end, the two thermocouple metal wires need to be twisted together and at the other end, the two wires are connected to a plug. The wires need to be labeled for identification and stay connected to the external device at all times until the measurement duration is completed. The individual measurements are typically displayed on this unit. Once the measurements are completed, the unit can be connected to a computer to download and analyze the data. Recently, wireless devices have been introduced that send the thermocouple measurements to cloud or smartphone.

Left image: Thermocouple wires crossed over in the plug assembly causing error in the measurements (Courtesy of Jon Belkowitz, Intelligent Concrete Inc.). Right image: Handling and labeling the thermocouple wires is a major hassle on the jobsite.

Left image: Thermocouple wires crossed over in the plug assembly causing error in the measurements (Courtesy of Jon Belkowitz, Intelligent Concrete Inc.). Right image: Handling and labeling the thermocouple wires is a major hassle on the jobsite.

Although thermocouples are relatively inexpensive, they have several disadvantages that make them not suitable for use in most of concrete thermal control plans. Most importantly, the measurement accuracy of thermocouples is low. Type J and K thermocouples have a standard error limit of at least 2.2°C (about 4°F) for typical concrete temperature ranges (See more details). This error is more than two times higher than the minimum measurement accuracy required in most concrete temperature measurement specifications (e.g. ASTM C1064 requires an accuracy of 0.5°C or 1.0°F for fresh concrete temperature measurement). Moreover, it is very time consuming to cut the wires, attach them to the plug, and install the setup in the field. Thin thermocouple wires are also very prone to cuts and damages, and thus measurement errors as they are typically not designed for harsh construction environments. In addition, the wires coming out of concrete and the external unit need to be protected throughout the entire temperature measurement period.

Wired Concrete Temperature and Maturity Loggers

To address some of the deficiencies in thermocouple-based systems, wired temperature and maturity loggers were developed. These loggers and meters have an electronic circuit board that contains a coin-size battery with an onboard thermistor (typically an NTC type sensor) for temperature measurement. The measurements are recorded and stored on this circuit board at pre-defined intervals. The whole circuit board is completely sealed with a connector wire coming out to download the measurements using an external device as needed unlike the thermocouple-based sensors that need to be always connected to an external data recording equipment. For the installation of these systems in concrete elements, the logger (or the sealed circuit board) is placed at the location where the temperature and maturity measurements need to be made. The connector wires are then dragged out of the structural element. After concrete pouring, users can connect their hand-held unit to the end of the wires to download the recorded temperature values.

Circuit Board Inside Concrete Connected With Wires to External Unit.

Circuit Board Inside Concrete Connected With Wires to External Unit.

The wires used for these types of temperature/maturity loggers are more rugged compared to thermocouples which makes them less prone to damages on the jobsite. The external unit is also not exposed to potential damages in a constriction environment as it is used only when downloading the data. External devices can offer various types of data analysis in the field. But, for full analysis and report generation, the data needs to be downloaded later on to a computer.

Wires coming out of concrete are prone to damages on the jobsite. A sign is posted in this case saying “DO NOT CUT WIRES”!

Wires coming out of concrete are prone to damages on the jobsite. A sign is posted in this case saying “DO NOT CUT WIRES”!

These types of temperature and maturity loggers don’t have an electrical switch and are always turned on. So, their shelf-life is limited. In addition, the industrial-grade connector cable makes these sensors bulky and difficult to install specially when long wires are used for large structural elements. Similar to thermocouples, the end of the wires need to be labeled for identification after pouring and has to be protected against potential cuts or other damages on the jobsite. Moreover, finding the cable lead during the first few days after pouring could be challenging as there are many construction tools, materials and components being moved and displaced on the jobsite potentially covering the cable lead.

Wired Concrete Sensors with External Wireless Transmitter

Whether using thermocouples or wired loggers for concrete temperature monitoring, the hassle of connecting an external device and the need to visit the jobsite to collect the data and later downloading it to a computer have prevented these types of sensors from wide industry adoption. With the electronic advancements, wireless data transmitters were developed to address the above challenges. These external units are connected to the end of the wires coming out of concrete to store and transfer the temperature measurements over a wireless network either:

  • To a computer connected to internet,

  • To a local wireless hub or gateway that then transfers data to cloud, or

  • Directly to cloud through networks such as LTE or Sigfox.

Sensor Wires Coming out of Concrete Connected to Wireless Transmitter Either With Hub and Direct Connection to Cell Tower.

Sensor Wires Coming out of Concrete Connected to Wireless Transmitter Either With Hub and Direct Connection to Cell Tower.

A great advantage of these wireless systems is that the data analysis can be done automatically on the cloud to generate custom alerts and notification for project managers and superintendents even when they are not on the jobsite. However, the wire connection to the external unit is still prone to cuts and the wireless unit located close to the concrete placement can be damaged in a harsh construction environment. Moreover, a complex system comprising wires, external transmitters and local hub can be challenging to install and configure as it has several different components. In addition, in remote jobsites where cell network connection is not available or if any of their components is damaged, these systems may not function properly.

Fully Embedded Wireless Concrete Sensors

With the advancements in electronics and wireless technologies, it has been possible to design self-contained wireless concrete sensors and loggers that are fully embedded in the concrete. The temperature measurements are stored on the sensor. The recorded data can then be download from the fully embedded sensor through various wireless communication protocols such as Bluetooth LE, LoRa, Zigbee, or wifi. In the case of Bluetooth LE, a smartphone or tablet can be used to connect wirelessly to the sensor to download the data and analyze it in real-time for maturity and strength estimation using mobile apps. The data is also transmitted to the cloud through the mobile device connection to the cell network. Alternatively, the sensor data can be downloaded automatically using a wireless local hub for transmission to the cloud without the need to visit the jobsite. For the other wireless protocols, the external hub must be used to download and transmit the data to the cloud as mobile devices do no support them.

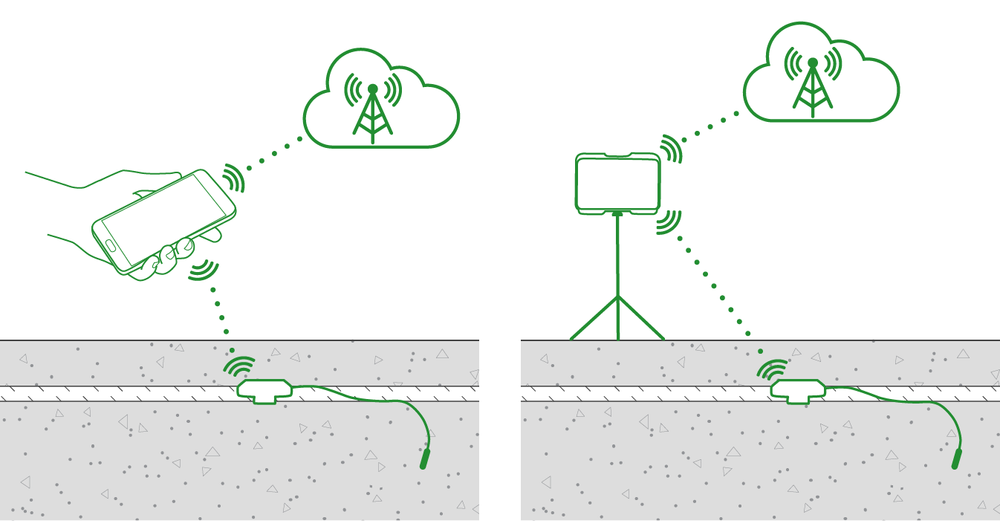

Sensor Inside Concrete Connected Wirelessly to Smartphone or Local Hub.

Sensor Inside Concrete Connected Wirelessly to Smartphone or Local Hub.

The main advantage of the fully embedded wireless concrete sensors is that, unlike wired systems, they are not prone to potential damages on the construction jobsite after pouring. The data is securely held on the sensor inside the concrete and can be downloaded with confidence at any time. Moreover, the installation and data collection are relatively simpler and faster as there are no wires to be dragged out of concrete, or in the case of Bluetooth LE, no external units that need to be maintained. The overall cost of measurement could therefore be lower than wired sensor. However, due to the sophisticated electronics, the initial purchase cost of these embedded sensors is higher than that of the wired sensors/loggers. It should be noted that the wireless signal from these sensors can only go through a couple of inches of concrete. So, for deeper locations, a temperature measurement cable is used while the wireless sensor’s transmitter is placed inside the concrete typically on the rebar below the concrete surface.

Commercial Concrete Temperature Sensors and Maturity Meters

A survey of the market shows that there are several options for purchasing a concrete temperature/maturity sensor for monitoring the concrete curing and hardening in your concrete project. This gives contractors a wide range of options for selecting a concrete sensor in their construction project based on the cost, accuracy, and ease of use. Here is the list of various commercially available concrete sensors, temperature loggers, and maturity meters in an alphabetical order:

Command Center

Command Center was developed by Transtec Group Inc. for concrete temperature and maturity monitoring. The Command Center wired loggers are embedded in concrete. The wire lead can then be connected to a hand-held device to download the data or attached to Bluetooth transmitter to send the data wirelessly to a mobile device on the jobsite.

Concremote

Doka offers Concremote sensors for concrete temperature and maturity monitoring. Concremote units come in different formats. One of the options is to place the Concremote sensor on the surface of concrete. Data is recorded and transmitted directly to the cloud through cell network. The other option is to embed wired Concremote sensors inside the concrete and attach a wireless transmitter to the end of the wire for wireless data transmission.

Concrete Sensors

Developed by Structural Health Systems Inc., Concrete Sensors is a fully embedded sacrificial sensor that records temperature and humidity of concrete. The data can be retrieved and analyzed at any time using Concrete Sensors’s mobile application via Bluetooth. Concrete Sensors also offers another version of their sensor that directly connects to a local gateway for data transmission to the cloud. Concrete Sensors was recently acquired by Hilti.

Con-Cure NEX

Similar to Command Center, the Con-Cure’s wired maturity loggers are embedded in the concrete. The wire lead that comes out of concrete can be connected either to a hand-held device to download the data recorded on the Con-Cure’s maturity sensors, or to a wireless node that then transmits data to the cloud through cell network or save it on an SD card. Con-Cure offers sacrificial and reusable sensors.

Converge

Converge has developed various solutions for concrete temperature and maturity measurement. Their original product (Converge Mesh) included wired sensors connected to wireless nodes that wirelessly send data to a local hub for transmission to the cloud. Converge’s recent sensor called Signal is a wireless sensor that is fully embedded in the concrete. Recorded data is wirelessly sent to either a mobile device or a local hub and then to the cloud through cell network.

Exact Technology

The wired sensors offered by Exact Technology are embedded in the concrete. The wire lead is then connected to a wireless node that sends the data to a local hub for transmission to the cloud through the cell network. The Exact Technology node can accept four wires. The data is analyzed for maturity and strength calculation and reporting on the cloud.

HardTrack

Wake Inc. offers the RFID-based HardTrack sensor. The HardTrack sensor comes in different formats. The temperature measurement cable is connected to an RFID reader. The RFID tag can either be embedded in the concrete or placed outside to be reused. Users can use an RFID reader to retrieve the recorded data or install a local hub to wirelessly download the data for transmission to the cloud.

HOBO

HOBO developed by ONSET is one many commercially available thermocouple data loggers. Multiple thermocouple wires can be connected to a HOBO box that is installed outside concrete. HOBO offers a regular logger that records the data for processing later on a computer, as well as a wireless logger that can record and send the temperature data via Bluetooth to a mobile device. Users need to calculate the concrete maturity and strength themselves based on the temperature results.

intelliRock

intelliRock maturity meters were originally developed by Engius. The company was later acquired by Flir. The intelliRock’s wired maturity loggers are placed inside the concrete. The wire lead that comes out of concrete can be connected to a hand-held device to download and analyze the data, or it can be connected to a wireless transmitter to send the data to the cloud.

AOMS Technologies

AOMS offers Lumicon concrete sensor. Lumicon can measure temperature at multiple pre-made locations across its cable. The cable end that comes out of concrete is connected to a wireless transmitter that then sends data to a local hub and then to the cloud. The data analysis and concrete maturity calculations are performed on the cloud. Data is also accessible using Lumicon’s mobile app.

Sensohive

Sensohive offers Maturix sensors for concrete temperature and maturity monitoring. Maturix uses thermocouple sensors. One end of the thermocouple wires is embedded in the concrete and the other end needs to be connected to a node. Each wire needs to have a separate node. The nodes record the concrete temperature data and send it wirelessly to the cloud (either directly if Sigfox network is available or otherwise through a local gateway). Sensohive was partially acquired by Kryton.

SmartRock

The concrete testing device manufacturer, Giatec, offers SmartRock maturity sensors. The wireless SmartRock sensors are fully embedded in the concrete without any leads coming out of concrete. The recorded data is wirelessly sent using Bluetooth either to a mobile device or to a SmartHub located on the jobsite that then transmits the data to the cloud through cell network. The data can be analyzed either using the mobile app in real-time on the jobsite, or on the Giatec 360 cloud dashboard powered by AI capabilities. Giatec also offers SmartRock Plus sensors exclusively through concrete producers that are pre-calibrated to their concrete mixes.

vOrb

The Concrete QC software company, Quadrel, offers vOrb sensors in different formats. The vOrb sensors which use wifi communication protocol are embedded in the concrete. The data needs to be retrieved via a local hub before it is transmitted to the cloud. Quadrel offers another version of vOrb sensors for monitoring the temperature and maturity of concrete cylinders.

Which Concrete Sensor Should You Use in Your Project?

When it comes to selecting a concrete temperature sensor or maturity logger for your next thermal control plan or field strength monitoring, there are many options that you can consider based on the sensor cost, its accuracy and ease of use. Each of these considerations can affect the overall cost and time needed to setup, collect, analyze and report the temperature, maturity and strength data, and ultimately impacts the ROI related to monitoring the curing and hardening of your concrete placements. Here is a summary of the commercially available concrete temperature/maturity sensors categorized based on their type:

Note: All company, product/service names, and brands used in this article are property of their respective owners. This article is intended to be used for informational purposes only.

Note: All company, product/service names, and brands used in this article are property of their respective owners. This article is intended to be used for informational purposes only.
